3x2x1 brick - a compact and customizable LED light fixture for off-grid lighting

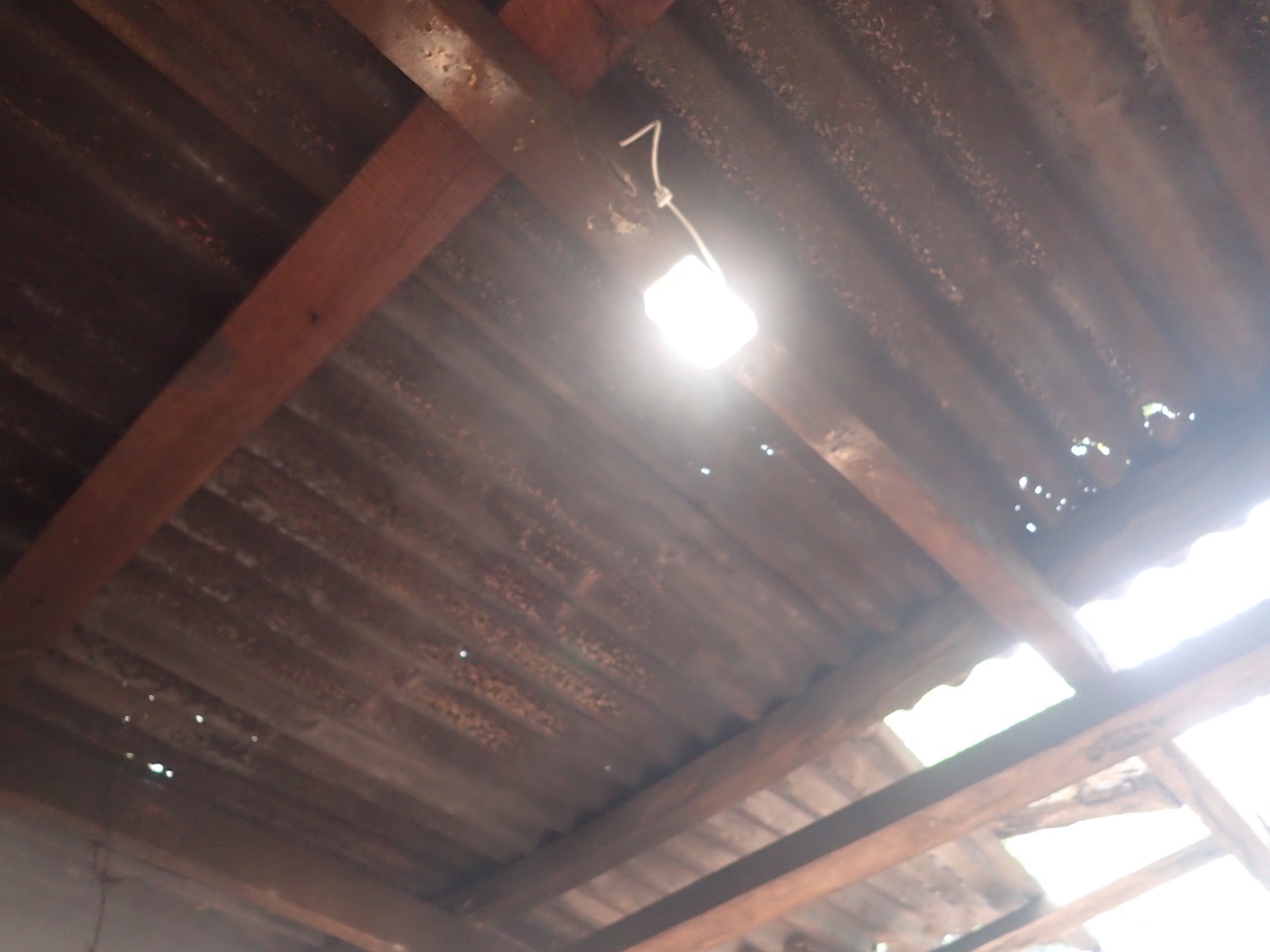

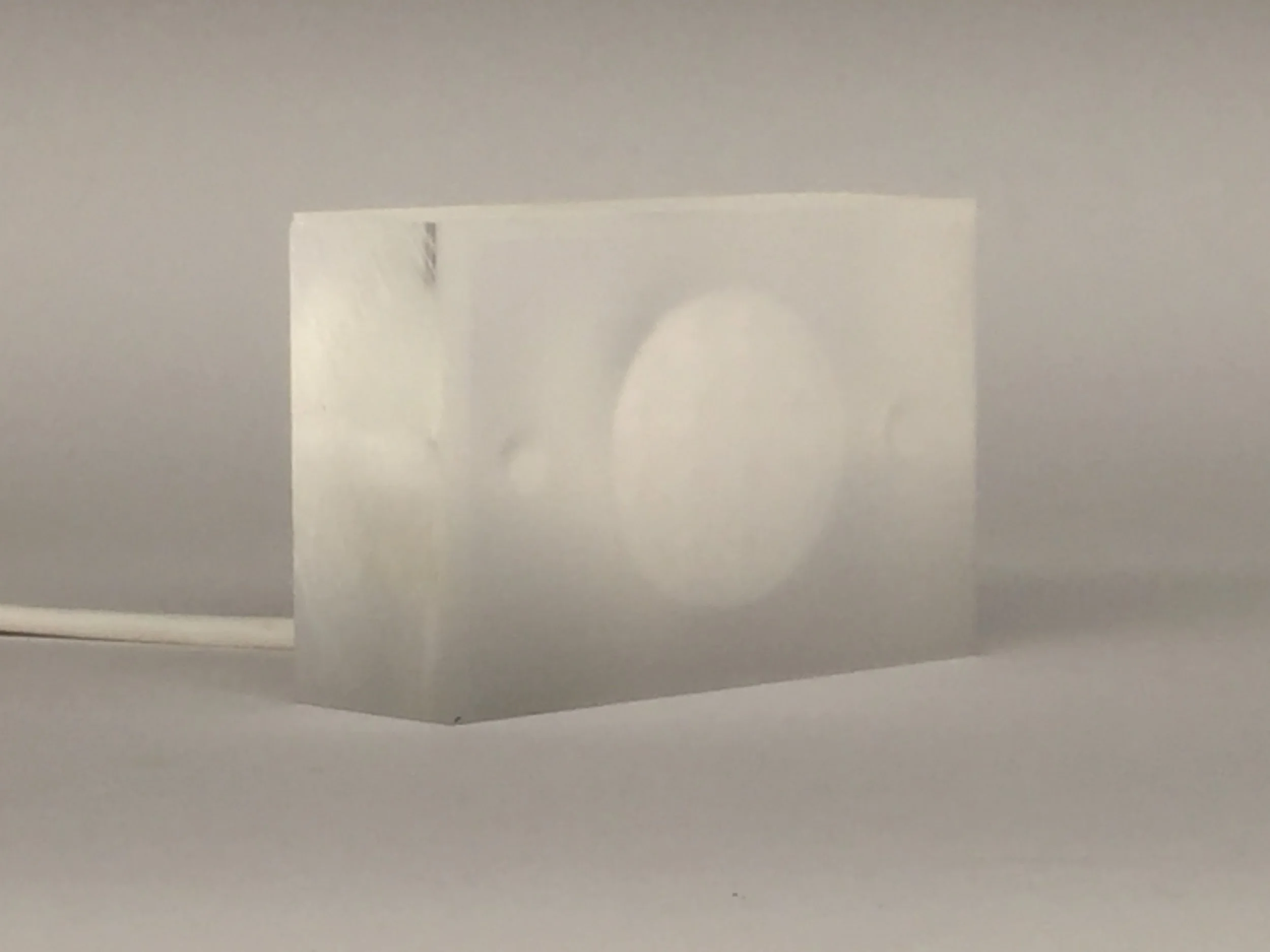

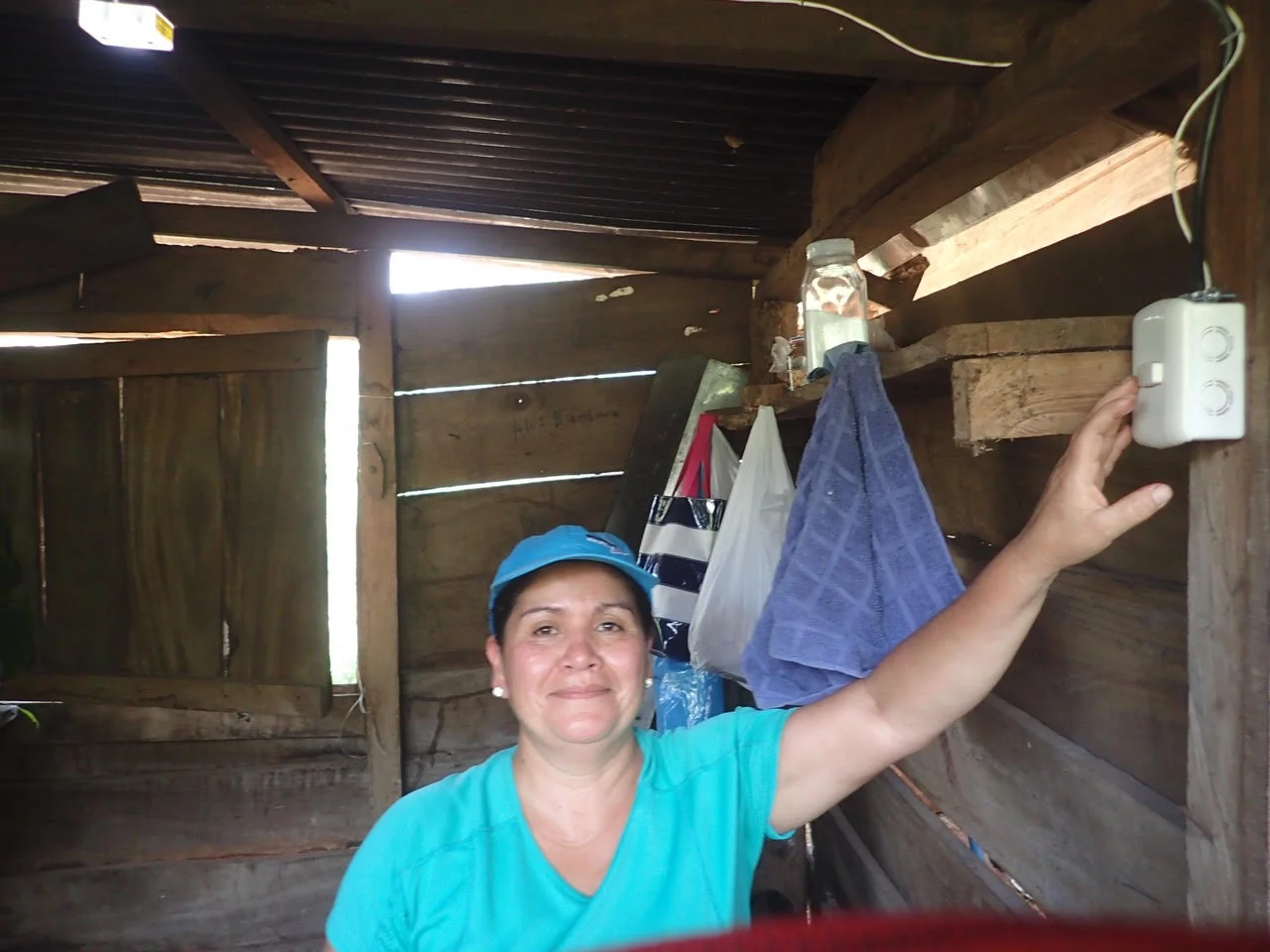

The LED brick is a versatile and long-lasting LED fixture, enclosed within a precision-machined acrylic block. It is a popular choice for low-voltage lighting in solar-powered structures, shelters, and restrooms, and is widely used and recommended by the National Park Service. Our 3x2x1 brick is highly adaptable and can be customized to include additional features such as a touchless air switch, photocell, PIR motion detector, or Doppler sensor. With its durability and flexibility, the LED brick is an ideal solution for a wide range of outdoor lighting applications.
Lumens:
9 LED: 77 lumens, 71 lm/W, .09mA or 1.08 watts
12 LED: 102 lumens, 70 lm/W, .120mA or 1.44 watts
Code:
Model: 3x2x1
LED count: 9 or 12
Color temperature option: 3000K or 5000K
Voltage option: 12vdc or 24vdc
Ordering example: 3x2x1-9-3000K-12vdc
Options:
LED count: 6 or 18, MOQ required.
LED color: red, green, blue, infrared or ultraviolet, MOQ required.
Enclosure: all parameters can be modified, contact us

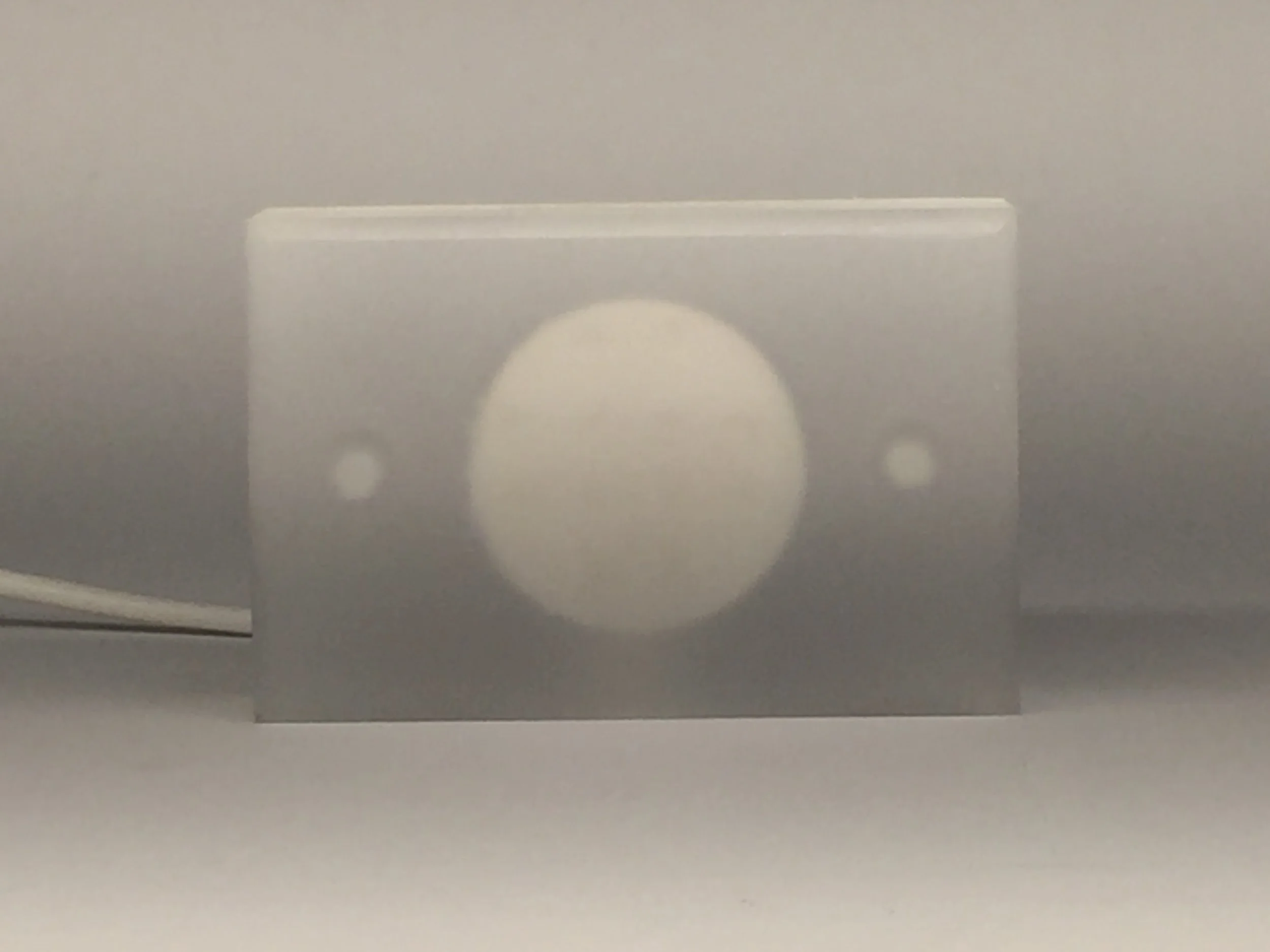

Dimensions:
L: 3 W: 2 H: 1 inch
Lens: diffused
Edge radius: .062 inch on top and sides only
Mount: 2, D: .25 inch mounting holes
Electrical:
Voltage: 12 or 24vdc
Wire: 12 inch 22/2AWG wire, exiting out of the back
Hookup: positive (+) = red / negative (-) = black

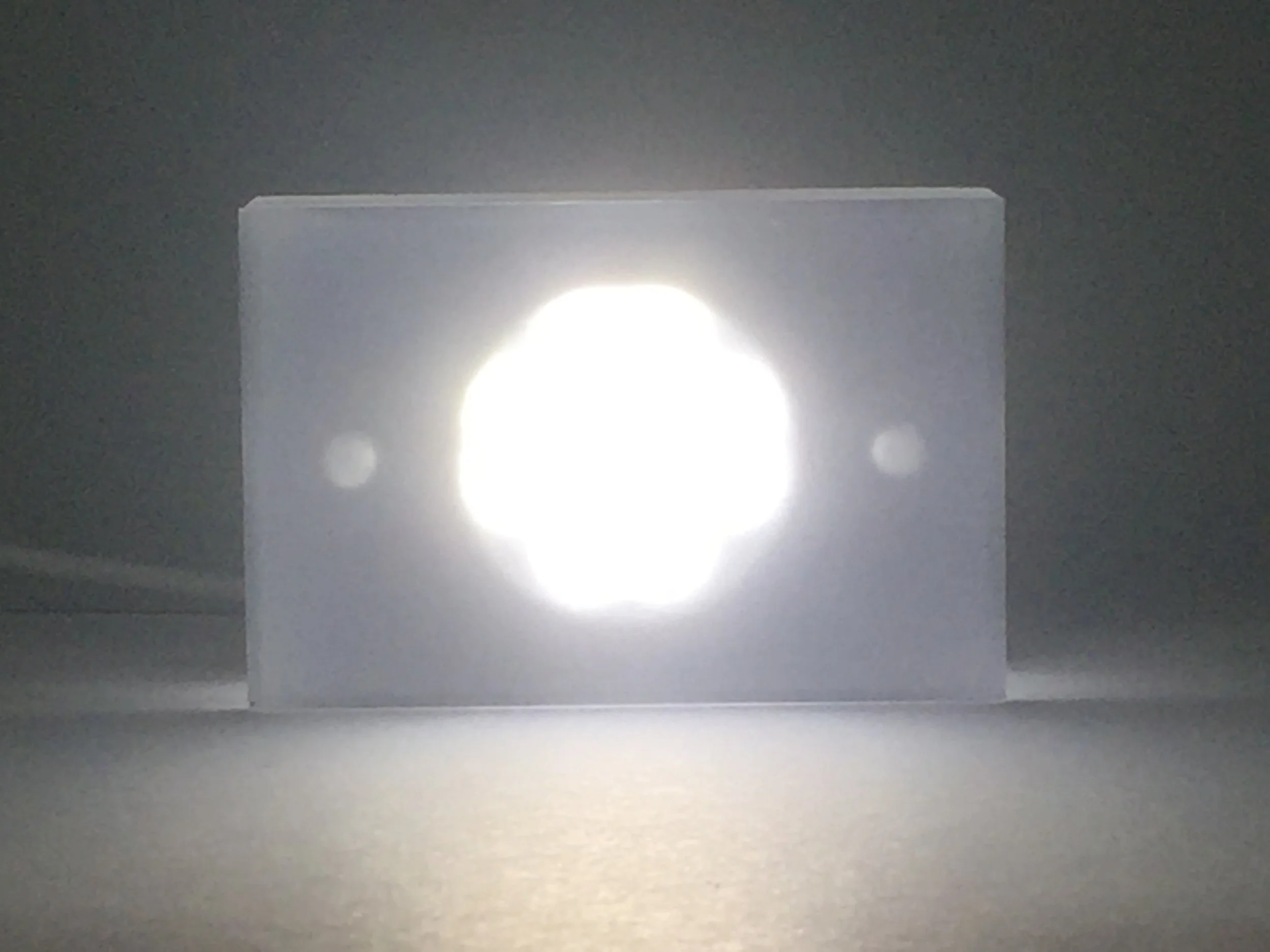

LED:
LED: 5mm, through-hole
LED count option: 9 or 12 LEDs in 12vdc or 12 LEDs in 24vdc
LED layout: circular
LED beam angle: ~15 degrees
Color temperature option: 3000K or 5000K
